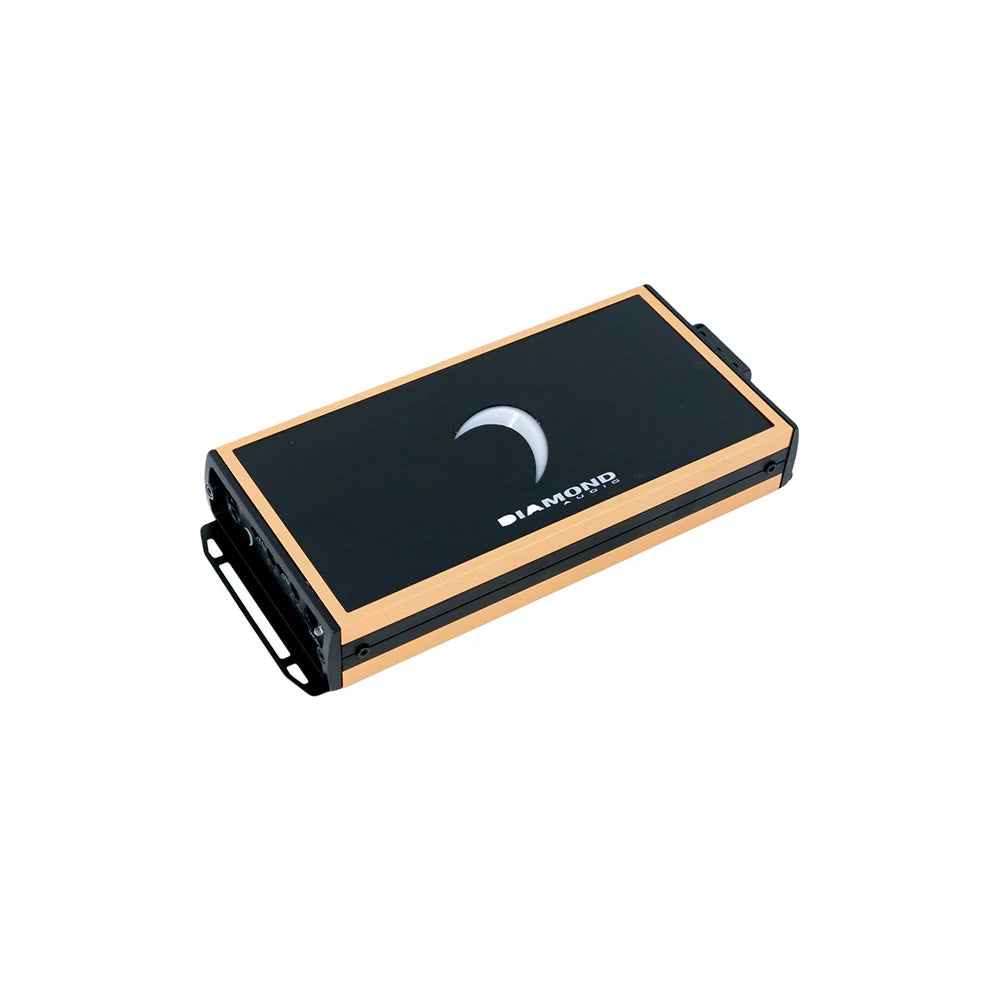

Diamond Audio MICRO82U 2-Channel Full Range Amplifier

Micro Series Class D 2 ohm Stable 2-Channel Amplifier

• RMS Power Rating:
  • 2 ohm: 200 watts x 2 channel
  • 1 ohm: 300 watts x 2 channel
  • Bridged: 600 watts x 1 channel @ 4 ohm
• Total RMS power output: 600 watts
• LED Power/Protect Light

• 3-way protection circuitry (thermal, overload, and speaker short protection)
• DirectFET Power MOSFET output stage
• SMD technology on 4-layer glass PC board
• Conformal coated PCB assembly for added water resistance
• ICAD circuit provides superior overload protection
• Variable 12dB crossovers
• Input sensitivity: 200 mV - 10 volts
• Frequency Response: 10 - 30000 Hz
• Total Harmonic Distortion (THD): 0.5%
• Signal to Noise Ratio: -85 dB
• Variable high-pass filter: 40 - 400 Hz
• Variable low-pass filter: 40 - 400 Hz
• Variable Bass Boost: 0 - 12 dB
• Fuse Rating: 25A
• 8 AWG gauge amplifier wiring kit is recommended for installation
• Dimensions: 9.0" L x 4.06" W x 1.52" H
• 1-year Manufacturer's Warranty
